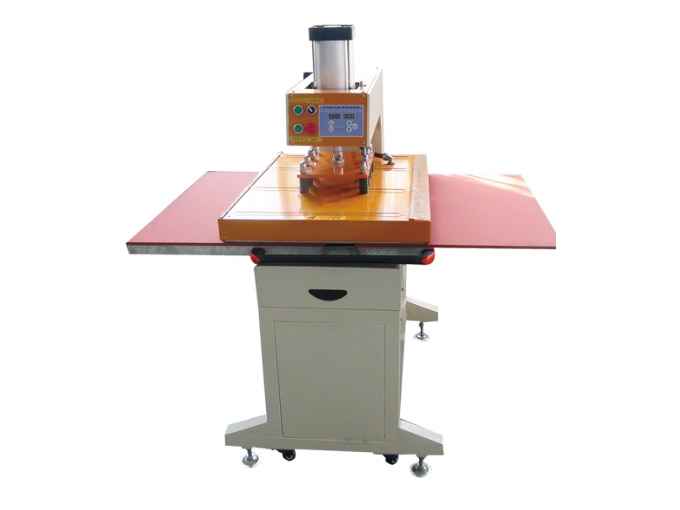

Character:
It can be controlled manually and automatically ,it can work constantly when it is at auto-position, greatly improve the work efficiency; When it is at manual position, it is controlled by double control knobs to protect operator's safety ,it use electromagnetic valve to control the position of heating plate ,raise the heating plate by hand in case the power is off, to protect the fabrics and reduce defective products.
|
Model |
Printing Area |
Temperature Range |
Voltage/Power |
N.W. |
Packing size（mm） |
|
PT-C501 |
400*500mm |
0-260℃ |
380V/3KW |
220kgs |
1500*800*1700 |
|
PT-C502 |
500*700mm |
0-260℃ |
380V/4W |
275kgs |
1600*900*1700 |
|
PT-C503 |
600*800mm |
0-260℃ |
380V/5W |
350kgs |
1800*1050*1700 |
